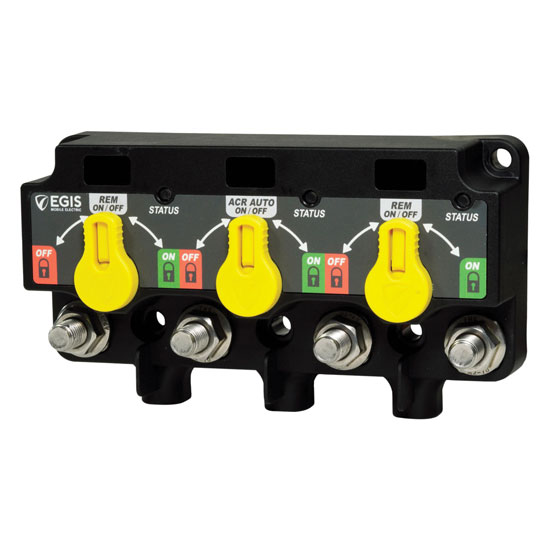

EGIS™ XD Triple Flex 2 (Mech/ACR/Mech) with Knobs. Flying wires. Bullet-proof construction. Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive manual control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state. Simple programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers. 35-75% reduction in mounting space & product weight. Plug and play compatible with legacy competitor products.

Continuous Current (Amps): 500A
Max Cranking Current (Amps): 1500A
Mechanical Switching Life: 1,000,000 Cycles
Voltage Range (VDC): 8-36
Off-State Current Draw (mA): 1.3
State Change Current: 5A at 12 VDC / 3A at 24 VDC
